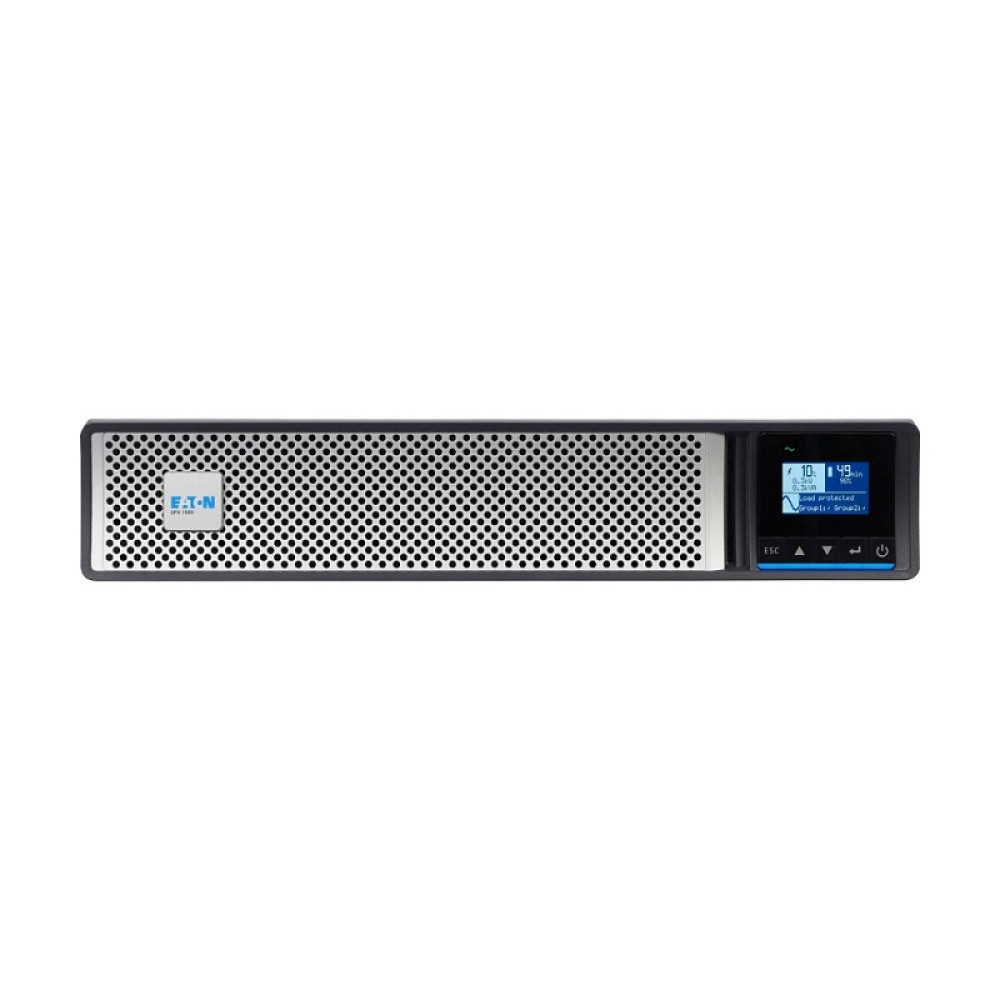

Eaton 5PX 1500i RT2U G2 UPS, 1350W / 1500VA, IEC C13, Line Interactive, rack / tower
5PX1500IRT2UG2-6
SIGURNO ONLINE PLAĆANJE:
DOSTUPNOST:
- Trgovina Zagreb (Nedostupno)
- Centralno skladište Zagreb (1 kom.)
- Narudžbe putem Interneta (1 kom.)
DOSTAVA:
- Besplatna dostava za cijelu Hrvatsku
- 15,00€ Express dostava za Grad Zagreb
NAPOMENA:
IQ Centar Internet trgovina može pogriješiti u opisu, slici ili cijeni proizvoda. Ukoliko primijetite sumnjivi opis artikla ili cijenu kontaktirajte nas putem e-maila na webshop@iqcentar.hr kako bi provjerili točnost podataka.
Eaton 5PX 1500i RT2U G2 UPS, 1350W / 1500VA, IEC C13, Line Interactive, rack / tower
Proizvođač:
Opis:
General
Topology Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration Tower/Rack 2U
Part Number 5PX1500iRT
Rating (VA/Watts) 1500/1350
Dimensions (H x W x D, mm) 86.2 x 441 x 522
Weight (kg) 28
Electrical Input
Connection
(1) IEC-320-C14
Input Voltage Without Using Batteries 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Electrical Output
Voltages 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V)
Outlets
(8) IEC-320-C13
Remotely controlled sockets 2 groups of 2 x IEC C13 (10 A)
Output Frequency 50/60 Hz +/- 0.1 % (autosensing
) Battery
Battery Management ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots 1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial
Environmental & Standards
Audible Noise < 45 dBA
Operating Temperature 0 to 40°C
Performance - Safety - EMC IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance),
Approvals CE, CB report, TÜV
Topology Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration Tower/Rack 2U
Part Number 5PX1500iRT
Rating (VA/Watts) 1500/1350
Dimensions (H x W x D, mm) 86.2 x 441 x 522
Weight (kg) 28
Electrical Input
Connection
(1) IEC-320-C14
Input Voltage Without Using Batteries 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Electrical Output
Voltages 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V)
Outlets
(8) IEC-320-C13
Remotely controlled sockets 2 groups of 2 x IEC C13 (10 A)
Output Frequency 50/60 Hz +/- 0.1 % (autosensing
) Battery
Battery Management ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots 1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial
Environmental & Standards
Audible Noise < 45 dBA
Operating Temperature 0 to 40°C
Performance - Safety - EMC IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance),
Approvals CE, CB report, TÜV
Jamstvo
36 months warranty
